High-Sensitivity RPM Sensor

Link Product Image

Innovative

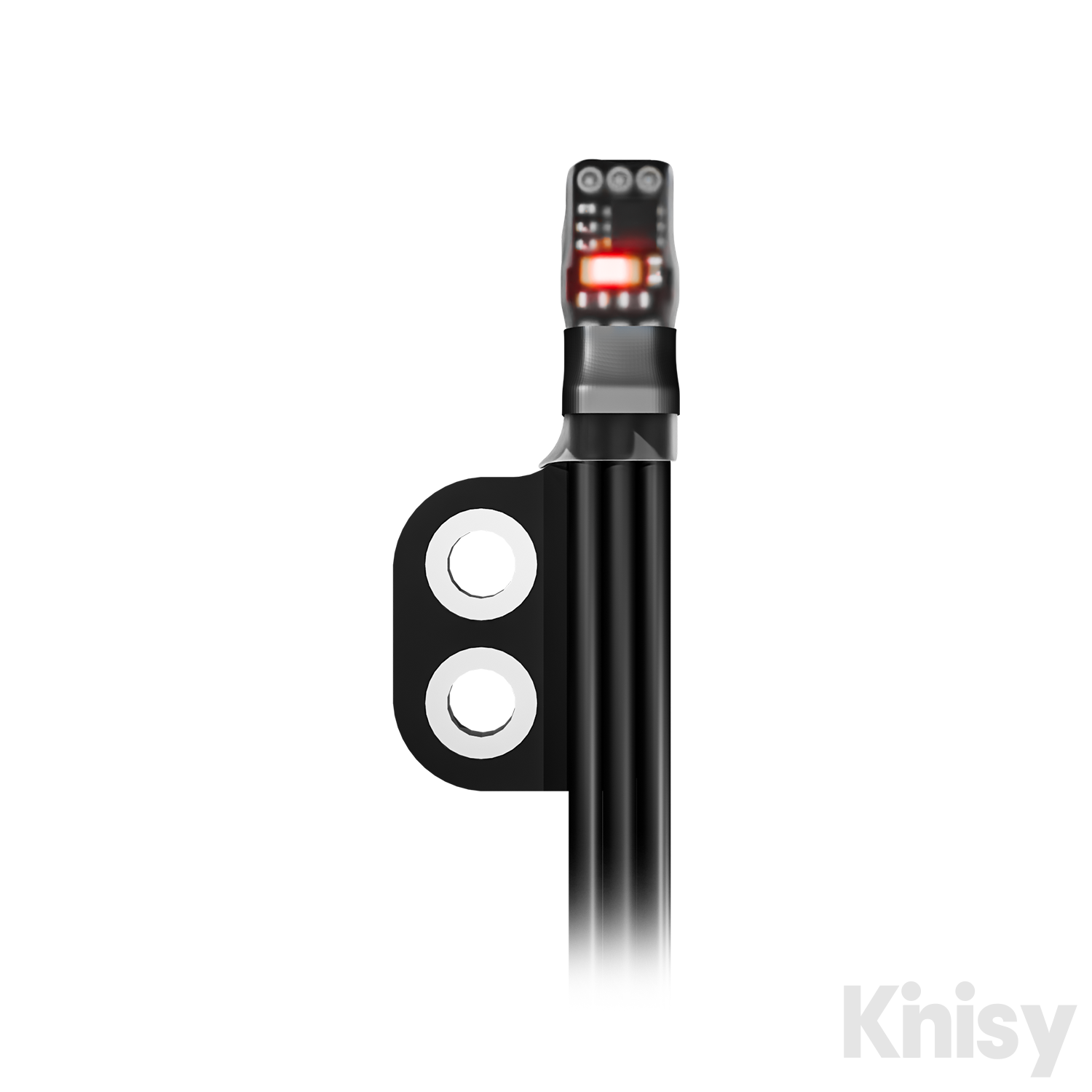

The Kinisy RPM Sensor features an LED indicator to help with magnet alignment, this saves time during setup and allows for quick debugging.

The Hall effect sensor is high-sensitivity compared to other competing RPM Sensors which further saves time during setup as the positional tolerance is greatly increased allowing for less precise mounting and greater distance between the sensor and magnet.

The onboard voltage regulator allows the sensor to operate at a wide range of voltages from 3.3V - 12V. Ensuring compatibility no matter what radio equipment/flight controller you are using.

The Kinisy RPM sensor is extremely small in size and lightweight thanks to the ultra-small surface mount components.

Included Hardware

The Kinisy RPM Sensor includes the following hardware:

  • 2X Neodymium Magnets
  • 2X Black M2.5 Nylon Locking Nut
  • 2X M2.5 Mounting Bolt
  • 4X M2.5 Nylon Spacers (1mm)
